Figure 2—figure supplement 2.

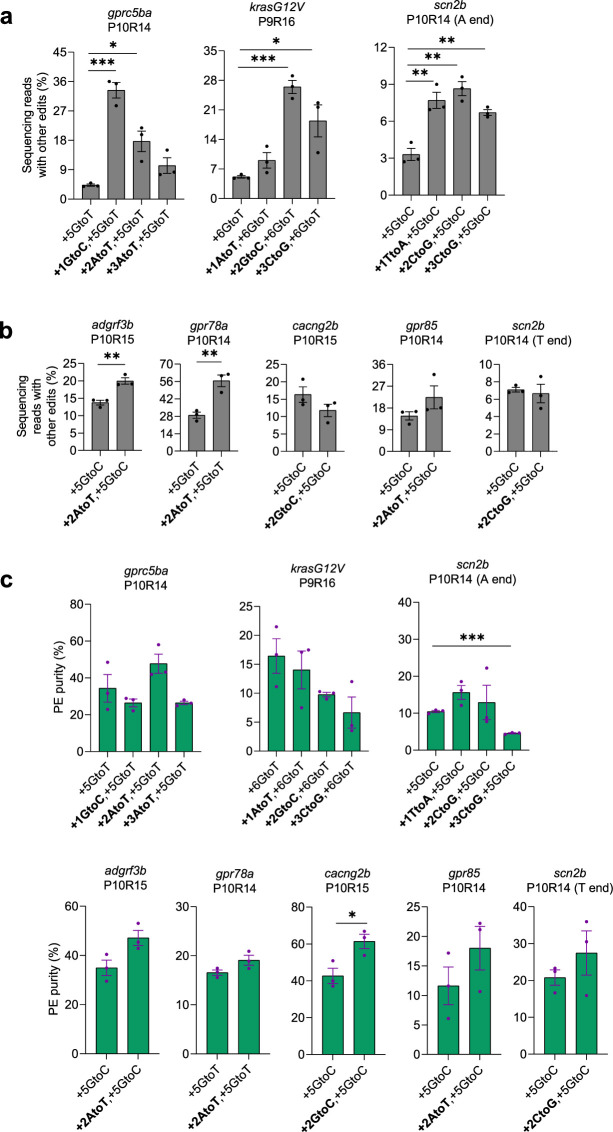

Figure 2—figure supplement 2. Purities of prime editing with PE2 and refolded pegRNAs carrying additional RTT mutations in zebrafish.

(a–b) Frequencies of non-pure PE edits (labeled as other edits) mediated by PE2 with refolded pegRNAs with or without an additional mutation in the RTT (at +1,+2 or+3). (c) PE purities calculated as pure PE over total edit (pure and non-pure PE) frequencies. Target loci, PBS lengths (labeled as ‘P’ followed by the number of nucleotides), and RTT lengths (labeled as ‘R’ followed by the number of nucleotides) are shown at the top. pegRNA-specified edits (denoted as the position of the edit followed by the edit) are shown at the bottom. Dots represent individual data points (n=3 biologically independent replicates, 5–10 embryos per replicate), bars the mean, error bars ± s.e.m. Results of unpaired two-tailed t-test with equal variance are shown in *p<0.05, **p<0.01, ***p<0.001.
